For the modern commercial driver, the Transport Canada mandatory electronic logs rule is not just a text in the law; it is the digital reality that governs every mile of the workday. While the mandate itself is established under Transport Canada regulations, the actual experience of living with that law depends entirely on the tool you choose. The requirement is straightforward — if you are currently required to maintain a HOS logbook, you must use a third-party certified ELD listed by Transport Canada to do so. But compliance is not just about plugging a dongle into your dashboard and hoping for the best.
The choice of device determines whether your day is smooth or stressful. A reliable ecosystem operates unobtrusively in the background, syncing your engine data with your logbook instantly and accurately. An unreliable system, however, creates constant headaches — dropped Bluetooth connections at weigh stations, unassigned driving events that take hours to fix, and the constant anxiety of a “Data Transfer Failed” message during a roadside inspection.
Compliance is about protecting your most valuable asset: your time. In this guide, we will move beyond the basic definitions to cover the specific technical rules of the mandate, clarify exactly who is exempt (and who isn’t), and explain how to spot a system that keeps you compliant without slowing you down.
Do you have any questions? Talk to ELD Advisor: 650-405-3372 or Request Callback
ELD Mandate: What is Actually Required
Many drivers and fleet managers still view the electronic logging device as a simple GPS tracker. However, the technical specifications laid out by Transport Canada’s Technical Standard for ELDs require a much more sophisticated integration between the vehicle and the software. To be truly compliant, a system must meet rigorous standards for “Integral Synchronization.”
The “Integral Synchronization” Rule
A compliant ELD cannot be a standalone GPS app on a smartphone that you manually toggle on and off. The regulations mandate that the device must be “integrally synchronized” with the engine’s Engine Control Module (ECM). This means the device must be hardwired or plugged directly into the diagnostic port (J1939, J1708, or OBDII) to automatically capture data points without human intervention.
To meet this standard, the device must automatically track and record:
- Engine power status. The device must log exactly when the engine is powered on and off.
- Vehicle motion status. This is the critical threshold. The system must automatically trigger a “Driving” status when the vehicle moves at a speed of 8 kilometers per hour or more. This removes the possibility of a driver “forgetting” to log drive time.
- Miles driven. The device must read the odometer data directly from the ECM, ensuring that the distance recorded on the log matches the vehicle’s actual dashboard reading.
- Engine hours. Total engine hours must be captured to track vehicle usage and maintenance intervals.
The Data Transfer Requirement
One of the most common points of failure during a roadside inspection is the data transfer. It is not enough for the officer to simply look at your screen; the officer may request that your logs be transferred directly to their authorized enforcement software for analysis. A compliant system must support at least one of the mandated data transfer methods under Canadian regulations:
- Wireless web service. The ELD sends the log file via a secure, encrypted internet connection to a destination specified by the enforcement officer.
- Email transfer. The ELD formats the log data into a specific file type and emails it to an address provided by the enforcement officer.
- Local transfer. The ELD must also be capable of transferring data via USB 2.0 or Bluetooth, allowing the officer to retrieve logs directly at the roadside when wireless methods are not practical.
If your device cannot successfully complete a data transfer using one of these methods during an inspection, you can be cited for using a non-compliant device.
Automatic vs. Manual: The Division of Labor
The mandate creates a specific division of labor between the machine and the human. The device is responsible for objectively recording movement. It automates the “Driving” status. However, the driver remains responsible for manually selecting all other duty statuses: “On-Duty Not Driving,” “Sleeper Berth,” and “Off-Duty.” Furthermore, the driver must certify their logs daily. The system cannot sign the log for you; your digital signature is the legal equivalent of signing a paper logbook, attesting that the data is true and correct.
Transport Canada Mandate Exemptions
While the mandate is broad, it is not universal. Transport Canada and provincial enforcement agencies recognize that certain operations and vehicle types do not fit the standard mold of long-haul trucking. Understanding these exemptions can save you the cost and complexity of installing a device you do not legally need. However, enforcement officers are trained to scrutinize these claims, so accurate documentation is essential.
The Pre-2000 Engine Rule
This is perhaps the most widely discussed and misunderstood exemption. The rule states that commercial vehicles manufactured before model year 2000 are exempt from the ELD mandate.
Unlike the U.S. regulation, Transport Canada specifies that the exemption is based on the model year of the vehicle as indicated by the VIN, not the engine model year. If you have a 2005 truck with a 1998 engine, you are not exempt in Canada.
Short-Haul Exemption (160 Air-Kilometer Radius)
Local drivers often qualify for the short-haul exemption, which relieves them from the requirement to maintain a daily log or use an ELD. To qualify, you must meet all of the following strict conditions:
- Radius limit. You must operate within a 160 air-kilometer radius of your normal work reporting location.
- Return home. You must return to that same work reporting location at the end of the day.
- Compliance with HOS. You must meet all Canadian Hours of Service requirements, including daily off-duty time and cycle limits.
Under this exemption, drivers are not required to keep a daily log but must have accurate time records maintained by the carrier. If you exceed the 160-kilometer radius or fail to meet the return-to-home requirements, you must maintain a daily log for that day. It is important to note that if you are required to use an ELD even one day in a month because you broke the short-haul criteria, you must be able to produce logs for the previous 14 days (on the ELD or as paper logs), as per HOS requirements.
Rental Vehicle
In Canada, a commercial vehicle is exempt from the ELD mandate if it is subject to a rental agreement with a term of 30 days or less, provided that the rental agreement has not been extended or renewed for the same vehicle.
If you claim an exemption, you must have the documentation to back it up immediately during an inspection. If you are constantly operating on the edge of the exemption, the administrative effort to prove your status can sometimes be more stressful than simply using a compliant device. Review your operation carefully; if there is any ambiguity, a reliable ELD is often the safest insurance policy against a costly violation.
In the world of logistics, uptime is currency. When your truck is moving, you are earning. When you are parked at a weigh station troubleshooting a tablet that won’t connect, you are losing money. This is why system reliability is not a luxury feature — it is a business protection strategy.

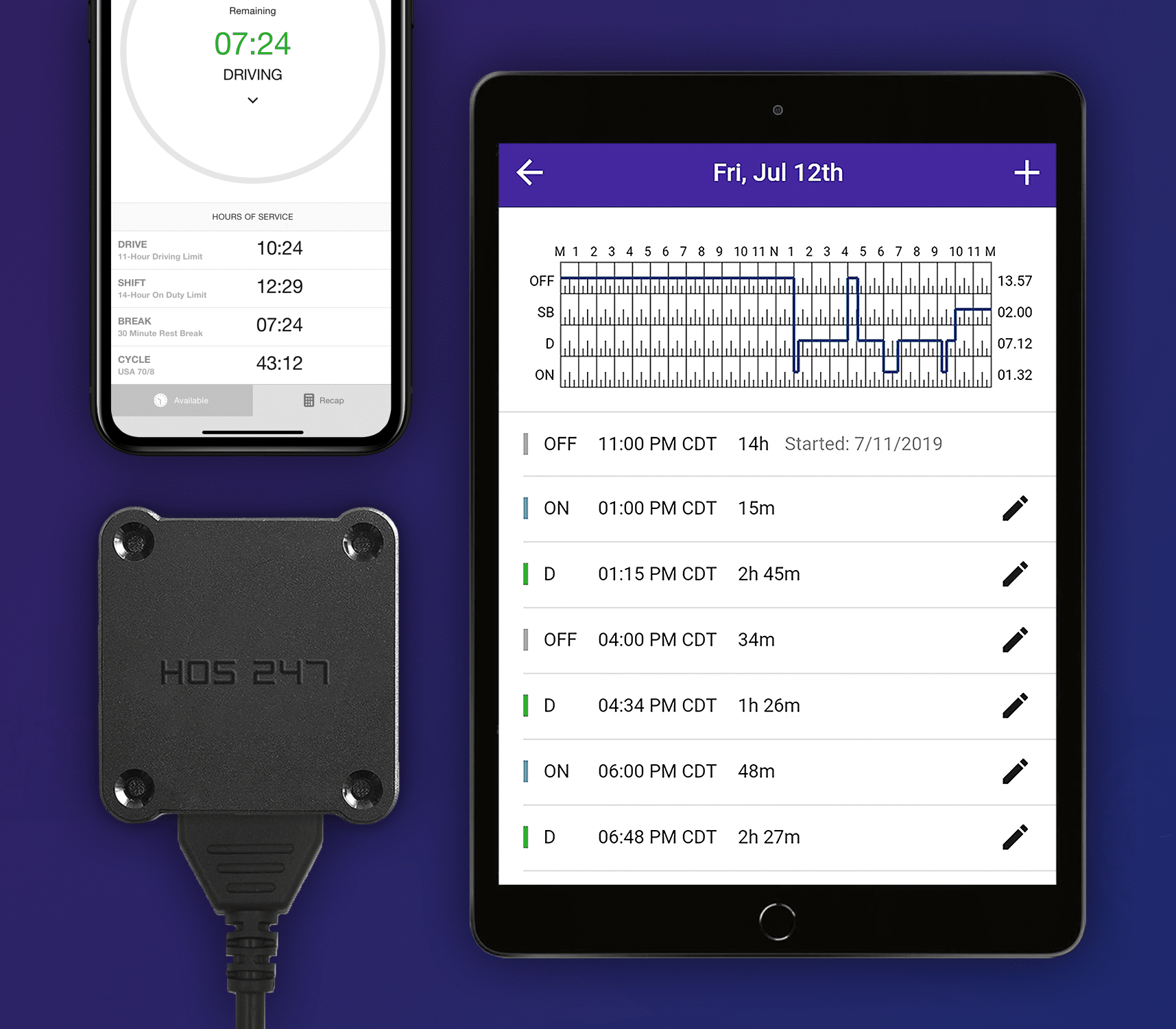

Hardware + Software: The Two Halves of Reliability
A robust ELD system consists of two distinct parts that must work in perfect harmony: the physical hardware and the user application.
- The hardware risk. The market is flooded with cheap, “white-label” dongles. These are often generic devices mass-produced with low-quality components. They are prone to vibrating loose from the diagnostic port or overheating on the dashboard. When the hardware fails to read the engine protocols correctly, it triggers “Data Diagnostic Events” or “Malfunctions,” forcing the driver to stop and troubleshoot.
- The software risk. Hardware is only half the battle. You interface with the app, not the dongle. If the software is poorly coded, it may crash, freeze, or drain your tablet’s battery. Worst of all, if the app fails to sync with the fleet portal, the dispatcher cannot see the driver’s hours, leading to scheduling errors and potential HOS violations.
Connectivity: The Weak Link
The invisible bridge between the hardware and the software is the connection protocol — usually Bluetooth. This is historically the number one source of driver frustration.
- The scenario. You pull into a roadside inspection station. The officer asks to see your logs. You open the app, but the screen says “Disconnected.” You toggle Bluetooth, restart the tablet, and unplug the device — all while the officer waits. This delay creates suspicion and tension.
- The solution. You need a system where the hardware and software are engineered to pair seamlessly. A reliable provider optimizes the Bluetooth “handshake” to ensure that the connection is re-established instantly every time the driver enters the cab.

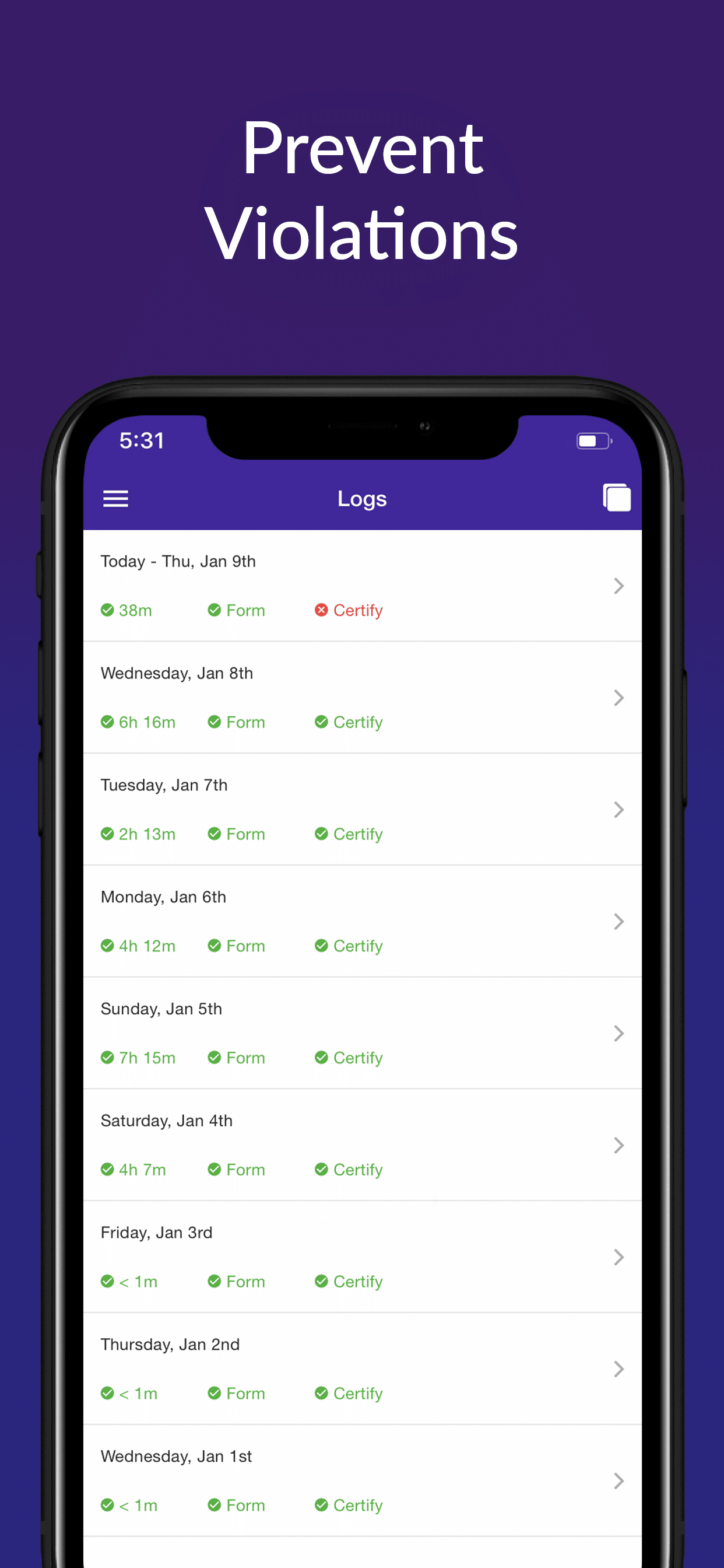

The Cost of Failure: Form & Manner Violations
Reliability also extends to compliance automation. Many violations issued are not for driving over hours, but for “Form and Manner” errors — simple administrative mistakes.
Missing data. A reliable app will prompt the driver to enter required information, such as the shipping document number, trailer number, and carrier name. Cheap software often skips these validation checks, allowing drivers to submit incomplete logs that result in easy citations for inspectors.
The “Malfunction” Paper Log Rule
Federal regulations establish a specific protocol for when technology fails. If your ELD experiences a malfunction that prevents it from recording or retaining hours of service data, you must revert to paper logs.
- The critical limit. You are allowed to use paper logs for up to 14 days following the malfunction.
- The consequence. If the device is not repaired or replaced within that timeframe, the carrier must take corrective action to restore compliance, and continued operation without a compliant ELD may result in enforcement action. Unlike the U.S. system, there is no standardized federal extension request process; enforcement is handled by provincial authorities. This is a bureaucratic hurdle that most fleets want to avoid. If the issue is not resolved and the driver continues operating without a compliant ELD, they may be placed Out of Service or otherwise penalized under provincial enforcement rules. Reliability is the only insurance against this risk.
Essential Features of a Compliant ELD System
There are a number of electronic logging systems available for truckers. However, certification does not guarantee that the elog works comfortably for your business. Before choosing an ELd, it is advisable to do some research on both the logbook and the provider. Here are some essential features to look for to ensure you are buying an efficient tool.
Transport Canada Certification Status
Before purchasing any system, you must verify that the specific device name and model are listed on the Transport Canada list of certified ELDs. Only third-party certified devices are legal for use in Canada. Using a non-certified device is equivalent to having no ELD at all. A reputable provider will have a clear certification record and transparent status.
User-Friendly Interface
Design matters. When a driver is fatigued at the end of an 13-hour driving limit or extended duty day under Canadian HOS cycles, or under pressure during a roadside inspection, they should not have to navigate complex menus to find their logs. Large, high-contrast buttons that are easy to tap with shaky hands. Clear visual indicators of duty status. A simple “one-click” workflow for the inspection mode required by Canadian enforcement officers. If the driver needs a manual to figure out how to go Off-Duty, the design has failed.
Stable App Performance
The ELD app is often running in the background for up to 16 hours per day depending on the driver’s cycle and duty day. It must be efficient enough not to drain the tablet’s battery or overheat the device. Look for an app with a high rating on the Google Play Store or Apple App Store. Read the recent reviews — if drivers are complaining about “crashing,” “freezing,” or “forced restarts,” steer clear.
Trial Periods
No amount of marketing copy can replace real-world testing. The best way to evaluate reliability is to put the device in a truck for two weeks. Look for providers that offer a trial period or a money-back guarantee. This allows you to test the Bluetooth connectivity, the ease of installation, and the responsiveness of the support team before you commit to a long-term relationship.
Ultimately, the price of an ELD is not just the monthly subscription fee, it is the cost of the downtime it prevents. A “cheap” device that fails during a roadside inspection costs you far more in fines and lost hours than a quality system does in annual fees. By prioritizing these essential features you are investing in an insurance policy for your fleet’s compliance score.
HOS247 Transport Canada Mandatory Electronic Logs Benefits: A Complete, Dependable Ecosystem
HOS247 has built its reputation by focusing on the friction points that frustrate drivers and fleet managers. We understand that compliance is a requirement, but efficiency is a choice. Our system is designed to provide a dependable ecosystem where the technology works for you, not against you.
System Reliability
Unlike many competitors who mix and match third-party hardware with white-labeled software, HOS247 offers a cohesive system. Our hardware and software are tuned to work together. This “system synergy” significantly reduces the frequency of connection drops and synchronization errors often found in Bring Your Own Device (BYOD) setups. The result is a stable, consistent connection that drivers can trust.
Top-Rated Multilingual Support
Technology is great, but sometimes you need a human. HOS247 offers an industry-leading support structure.
- We are available to help. Our team is available 7 days a week. We know that trucking doesn’t stop on weekends, and neither do we.
- We speak your language. Support is available in English, Spanish, Russian, and Polish. This is critical for diverse fleets. If a driver has a compliance question or a technical hiccup, they can explain it in their native language and get an immediate, accurate solution.
- We know the rules. Our support agents are trained on Canadian HOS regulations and Transport Canada mandatory electronic logs requirements. We don’t just tell you which button to press; we help you understand the compliance reasons behind it. Whether you are dealing with an unassigned driving event or need clarification on cycle limits or off-duty deferrals, you are talking to an expert who understands the law, not just the software.
No-Contract Policy
We believe that we should earn your business every month. While many large providers try to lock fleets into restrictive 3-year contracts with hefty cancellation fees, HOS247 operates on a flexible, no-contract basis. This policy aligns our incentives with yours — we have to provide excellent service and reliable hardware to keep you as a customer.
All-in-One Solution
HOS247 streamlines your operations by consolidating multiple tools into a single app.
- IFTA mileage. The system automatically calculates mileage by jurisdiction, simplifying quarterly tax reporting.
- GPS tracking. Real-time visibility into vehicle location improves dispatching and customer service.
- Vehicle diagnostics. Receive alerts for engine fault codes, helping you address maintenance issues before they cause a breakdown. By handling these functions in one platform, we reduce the need for multiple subscriptions and apps.
Driver-Centric Design
Our app is consistently rated highly by drivers because it respects their time. The interface is intuitive, requiring minimal training. Drivers can log in, complete their DVIR, and start driving in seconds. This ease of use reduces log errors and makes the transition to HOS247 seamless for the entire fleet.
HOS247 is built on the philosophy that your technology should be the quietest part of your day. By combining high-quality hardware with a flexible, driver-friendly app and backing it with human support, we transform compliance from a daily struggle into a background process. We handle the data and the regulations so you can focus on the road, knowing that your fleet is supported by a system designed to keep you moving.
Even with the best ELD system in the world, you can still be cited if you are missing the required physical documentation. Canadian regulations require that every driver must carry specific items in the cab at all times. Use this checklist to ensure you are ready for a roadside inspection.
1. User Manual for the ELD
You must have a user manual (either digital or paper) that describes how to operate the ELD. This shows the officer that you have the resources to use the device correctly. As of current Canadian enforcement practice, most officers accept digital manuals, but having a paper copy ensures zero downtime if your tablet battery dies.
2. Data Transfer Instruction Sheet
This is a step-by-step guide that explains how to transfer your logs to the safety official. In a high-stress situation, it is easy to forget the steps. This sheet ensures you can perform the transfer quickly and correctly.
3. ELD Malfunction Reporting Sheet
You need an instruction sheet that describes the malfunction codes and the procedures for reporting a failure to your carrier. This proves you know what to do if the device breaks.
4. Supply of Blank Paper Logs
You are required to carry a supply of blank paper Records of Duty Status (RODS) graph grids sufficient to record your duty status for a sufficient number of days to cover a malfunction period.
The “Instruction Card” Tip
We recommend keeping a laminated “ELD Reference Card” handy. This card should summarize the transfer instructions and list the location of the user manual. Handing this to an officer along with your license shows that you are organized, professional, and prepared, which sets a positive tone for the entire inspection.
During a roadside stop, perception is reality. A driver who fumbles for a manual or cannot find their spare logs signals to the officer that they are disorganized, prompting a deeper investigation. Conversely, a driver who can immediately produce these required items demonstrates professionalism and competence. Keeping this checklist complete doesn’t just keep you legal; it speeds up the inspection process, getting you back on the highway faster.
Future-Proofing Your Fleet
Transport Canada mandatory electronic logs are a reality, but they don’t have to be a burden. By understanding the technical requirements, knowing your exemption status, and choosing the right technology partner, you can turn a federal and provincial regulatory requirement into a streamlined part of your fleet management.
Reliability is the key to future-proofing your business. A stable system protects you from violations, saves you time at inspection stations, and keeps your trucks moving. Choosing a partner like HOS247 ensures that your compliance is handled by experts, allowing you to focus on what you do best: driving.
Don’t settle for unreliable connections and frustrating support. Experience the difference a dependable system makes. Check out the HOS247 demo or start your two-week trial today to see why thousands of drivers trust us to keep them compliant.
A Note to Our Readers on Compliance
This article is intended for informational and educational purposes only. It is not a substitute for official regulatory guidance or legal advice. HOS and ELD regulations are complex and subject to change and interpretation by enforcement authorities. Please always refer to official sources for the most current and accurate information.
