Navigating compliance requires strict adherence to safety regulations, especially when managing electronic driver logs. An electronic driver log system is not merely a smartphone application; it is an integrated hardware-software compliance platform mandated by law to record a commercial driver’s Record of Duty Status (RODS).
A common misconception among commercial motor carriers is that downloading a logbook application onto a tablet or mobile device fully satisfies legal mandates. Under regulatory guidelines, a standalone app is entirely non-compliant. The regulation requires a hardware piece to connect directly to the vehicle’s Engine Control Module (ECM) to capture real-time operational metrics.
Relying on uncertified, unstable, or improperly integrated logging equipment exposes motor carriers to severe operational risks. If a mobile application loses synchronization with the vehicle engine, or if a fleet utilizes hardware not verified on the official registry of certified devices, the carrier risks immediate non-compliance penalties during roadside inspections.
Beyond fines, systemic compliance failures damage a fleet’s safety profile, trigger comprehensive safety audits, and can lead to Out-of-Service (OOS) orders that disrupt operations. Maintaining a secure, automatically synced logging profile across every vehicle in your fleet helps preserve operational status and support commercial business continuity.
While the industry-wide transition from manual paper records to digital logging is largely complete, modern fleet management demands more than basic compliance. Selecting a logging platform engineered for reliable connectivity and continuous data integrity helps fleets avoid technical glitches, roadside delays, and administrative burdens.
Do you have any questions? Talk to ELD Advisor: 650-405-3372 or Request Callback
Technical Synchronization and Automated Data Integrity
To meet mandatory electronic logging device requirements, an electronic driver log platform must maintain continuous, precise synchronization with the commercial motor vehicle’s engine gateway. Technical standards outline four explicit technical parameters that the physical hardware must automatically record from the vehicle’s diagnostic port cable:
- Ignition cycle events. The device must log every instance the vehicle engine is powered on or shut down, creating an unalterable timestamp of operational activity.
- Vehicle motion thresholds. The system must automatically detect when the vehicle enters motion. Technical standards dictate that once a vehicle reaches a speed threshold of 8 km/h, the software must automatically transition the driver’s duty status to “Driving.”
- Total odometer readings. The hardware must read and transmit total odometer distance directly from the ECM, supporting tracking accuracy without relying on manual driver entries.
- Continuous engine hours. The system must log total engine operation hours continuously, providing an accurate, tamper-proof record of engine runtime.
|
Mandatory Technical Parameter |
Detection Standard |
Regulatory Purpose |
|
Ignition Cycles |
Automated ECM Event Detection |
Establishes exact operational timestamps for power-on / power-off. |
|
Vehicle Motion |
8 km/h Speed Threshold |
Triggers automatic duty status transition to “Driving” to eliminate manual status updates. |
|
Odometer Readings |
Direct ECM Distance Readout |
Captures precise vehicle mileage/distance for accurate RODS and IFTA auditing. |
|
Engine Hours |
Continuous Engine Runtime Tracking |
Verifies actual engine operation time independently of GPS movement. |
A major pain point for fleet managers and safety directors is managing unassigned driving events. Data integrity rules mandate that any time a vehicle moves past the 8 km/h threshold, the hardware gateway captures the movement and logs the distance, even if the driver forgot to log into the mobile app beforehand.
When unlogged vehicle movement occurs, the system generates an unassigned driving file that must be manually reviewed, annotated, and assigned to the appropriate driver or administrative personnel (such as a mechanic moving the truck in the yard). Unassigned distance creates a major administrative burden for safety teams and acts as an immediate red flag for inspectors during an audit.
Systems prone to connection drops between the engine gateway and the mobile logbook software artificially multiply unassigned driving records by failing to attribute distance to the logged-in driver during transient disconnects. Utilizing a high-performance logging setup with verified Bluetooth background stability helps protect fleet assets. Proving continuous, secure background data capture is the only reliable method to eliminate phantom unassigned distance penalties and simplify compliance during audits.
Comparative Market Standings of Android Logging Platforms
To maintain operational continuity on the highway, a commercial driver logbook program must perform consistently under real-world conditions. While many providers promise simple compliance, actual highway operations expose significant technical discrepancies between platforms. Application store ratings reflect actual field performance, shedding light on software stability, background processing efficiency, and user interface design.
Evaluating driver feedback from public application repositories highlights how prominent electronic logging platforms compare when deployed in daily commercial transport operations.
| RANK | ELD PROVIDER | iOS APPSTORE | ANDROID PLAYSTORE |
|---|---|---|---|
| 1 | |||
| 2 | KeepTruckin | ||
| 3 | JJ Keller | ||
| 4 | BigRoad | ||
| 5 | Garmin | ||
| 6 | Rand McNally | ||
| 7 | |||
| 8 | Transflo | ||
| 9 | PeopleNet | ||
| 10 | Verizon |
A low application rating is not merely a cosmetic flaw; it directly correlates to roadside stress, technical friction, and lost dispatch hours. When a driver logbook application freezes or fails to maintain an active engine gateway link, the driver faces immediate compliance vulnerability during scale pull-overs or roadside audits.
Choosing an electronic driver logs setup supported by verified high driver satisfaction rankings removes technical friction inside the cab. Selecting an optimized, driver-approved system remains the most practical path for independent operators and fleet safety directors seeking to protect revenue hours.
Roadside Inspection Protocols and eRODS File Transmission

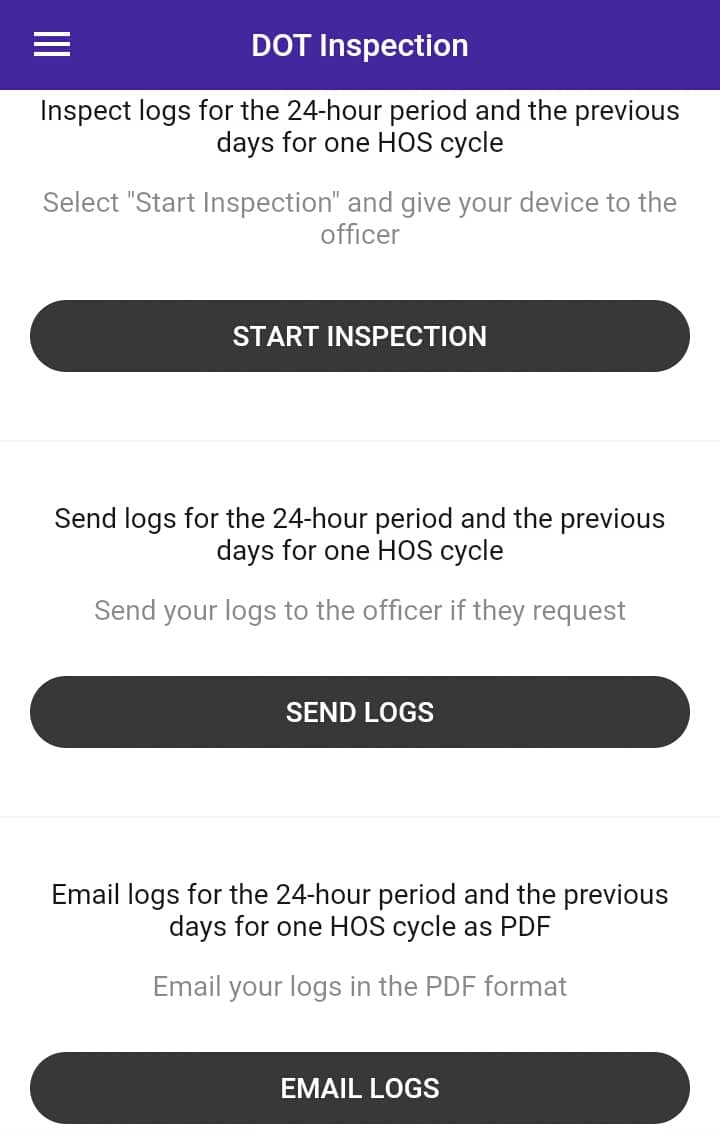

Enforcement checkpoints represent the ultimate test of a fleet’s digital compliance strategy. During a roadside review, the commercial driver must present clear proof of compliance through an approved electronic logging interface. Modern electronic logging software must include a dedicated single-tap inspection mode designed to protect carrier security and streamline the officer’s review.
When inspection mode is activated, the application locks down sensitive operational data, personal messaging, and fleet management files. It strictly displays the current 24-hour log graph alongside the preceding 14 consecutive days of driver logs.
Once the safety official requests official electronic records, data transfer occurs through standardized transfer protocols such as encrypted email. The system compiles the raw Record of Duty Status data into an electronic Record of Duty Status (eRODS) output file and transmits it directly to the inspecting officer’s field terminal.
In remote corridors or mountainous regions, cellular network coverage frequently drops, preventing immediate cloud-based eRODS transfers. Regulatory frameworks account for these connectivity gaps by establishing clear backup validation protocols:
- Primary transfer attempt. The driver initiates an automated transfer via encrypted email protocols.
- Secondary protocol. If email transmission fails due to localized network drops, local transfer options (such as USB 2.0 or Bluetooth) may be used where supported by the inspection official.
- On-screen display fallback. If all digital transmission options are unavailable due to complete signal loss, presenting the clean 24-hour graph grid and driver logs directly on the mobile screen satisfies all requirements.
As long as the engine gateway hardware captures underlying data locally, displaying the on-screen graph prevents non-compliance citations during wireless blackouts.
Deploying an organized, driver-focused inspection interface reduces the time commercial vehicles spend idling at roadside scales. Intuitive software layouts remove compliance ambiguity, proving to be a critical operational tool for keeping freight moving between terminals.
In-Cab Compliance Documentation and Backup Contingencies
While electronic logging platforms store compliance data digitally, regulations require drivers to maintain specific physical documentation inside the vehicle cab at all times. Failing to produce these mandatory documents during a roadside inspection results in instant compliance violations, regardless of whether the primary logging device functions properly.
The regulations require commercial vehicles to carry four distinct compliance items:
- System user manual. An operational guide detailing how to navigate and operate the logging system.
- Data transfer instruction sheet. A step-by-step instruction sheet explaining how to initiate roadside eRODS file transfers to enforcement officers via email or local protocols.
- Hardware malfunction guide. A document outlining the specific visual or audible malfunction indicators generated by the hardware, along with required driver response procedures.
- Backup paper log supply. A minimum supply of 15 blank graph-grid paper log sheets, enabling manual logging if hardware fails.
Mandatory In-Cab Document Checklist
|
Required Document Item |
Regulatory Citation |
Operational Purpose |
|
System User Manual |
Technical Standard § 4.8.1 |
Provides operational guidance for navigating the device software. |
|
Data Transfer Sheet |
Technical Standard § 4.8.2 |
Outlines execution steps for eRODS transfers during roadside checks. |
|
Malfunction Guide |
Technical Standard § 4.8.3 |
Identifies hardware failure codes and required driver response steps. |
|
15 Blank Paper Logs |
Section 82 / Technical Standard |
Serves as emergency manual logging supply if hardware malfunctions. |
When logging hardware suffers an internal failure, strict regulatory timelines trigger immediately under Section 78. The driver and carrier must follow a precise compliance workflow to avoid enforcement action:
- Immediate notice. The driver must record the malfunction and provide notification to the motor carrier as soon as the vehicle is safely parked upon discovering the issue.
- Immediate RODS reconstruction. The driver must immediately reconstruct the record of duty status for the current 24-hour period and the preceding 14 consecutive days using paper logs (or printed PDF outputs), unless the records remain accessible on the mobile device.
- 14-day repair window. The motor carrier has 14 days (or upon return to the home terminal if the trip is longer than 14 days) from the initial discovery date to repair, service, or replace the malfunctioning hardware unit.
Carrying complete backup documentation is a mandatory safeguard against immediate OOS orders. Partnering with a transparent hardware provider ensures fleet operators receive compliant in-cab documentation packets and rapid equipment replacement support before regulatory deadlines expire.
Dynamic Compliance Logic and Special Duty Statuses
Modern hours of service tracking extends beyond recording basic Driving, On-Duty, Off-Duty, and Sleeper Berth statuses. Advanced compliance software incorporates dynamic logic engines designed to process complex duty status exceptions without corrupting core driver logs.
Commercial operations frequently utilize special operating categories and exemptions that alter standard driving clocks:
- Split-sleeper berth calculations. Drivers can divide their required off-duty period into two segments inside the sleeper berth. When both periods are completed, the software automatically recalculates the operational window from the end of the first rest period, preserving usable driving hours.
- Adverse driving conditions extension. When drivers encounter unexpected adverse road conditions, such as severe weather or road closures that could not be foreseen prior to dispatch, rules allow a two-hour driving extension.
- Yard move (YM). An On-Duty status category designated for moving trucks within closed terminal facilities, yards, or customer locations. When set correctly, distance accumulated does not count against driving hours or trigger automatic driving status transitions.
- Personal conveyance (PC). An Off-Duty status category allowing drivers to operate a commercial motor vehicle off-duty for personal transit during non-working time, up to a maximum distance of 75 kilometers per day.
A common source of driver stress is the fear of incurring accidental hours of service violations due to complex cycle rules or interprovincial transit. Driving rules change across jurisdictional lines; for example, interprovincial rules enforce standard daily drive limits, whereas intra-provincial rules in specific regions enforce different daily limits.
Compliance software must evaluate remaining work cycles dynamically based on the active operating jurisdiction, calculating exact available drive time automatically to eliminate manual calculation errors.
Automating regulatory logic inside the cab allows commercial drivers to maximize their legal working hours safely. Implementing software engineered to handle split-sleeper calculations, duty toggles, and regional rules eliminates rule confusion and transforms compliance software into an operational asset.
Operational Advantages of HOS247 Electronic Logbook

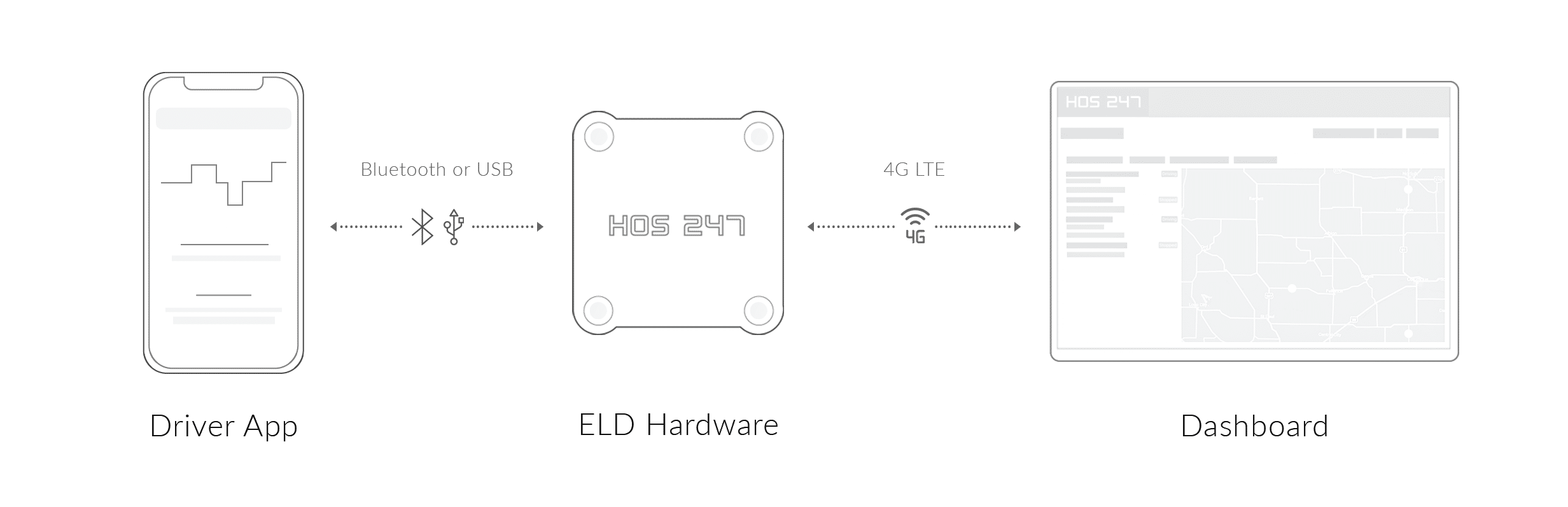

Maintaining high compliance standards and keeping vehicles moving requires hardware stability and clean, intuitive software interfaces. HOS247 delivers a comprehensive electronic logging solution designed around the actual needs of commercial drivers, safety directors, and fleet owners. Benefits include:
- Driver-focused mobile application. Reduces administrative errors through a straightforward driver logbook app that eliminates complicated menu screens. Commercial drivers can update duty status entries, add annotations, and complete electronic Driver Vehicle Inspection Reports (DVIRs) with minimal screen taps.
- Plug-and-play vehicle gateway. Prevents data gaps by connecting directly to the vehicle’s diagnostic port and establishing a dedicated Bluetooth link to the mobile device screen. The engine gateway reads and transmits critical engine parameters continuously without dropping connection during transit.
- Multilingual driver support. Resolves roadside issues quickly with technical support available seven days a week. Support agents can assist drivers in multiple languages, including English and Spanish, during stressful scale inspections.
- Optimized software battery performance. Prevents mobile device overheating and battery drain with background processing code. The logging application runs continuously during long shifts without consuming excessive device power or requiring high-wattage charging setups.
- Universal diagnostic cable assemblies. Avoids hardware incompatibility with adaptable cable options for standard 9-pin, 6-pin, and OBDII ports. This ensures a secure connection whether fleets operate heavy-duty tractor-trailers or medium-duty delivery vehicles.
- Transparent hardware replacement options. Minimizes unexpected operational costs with straightforward equipment replacement policies. Carriers can swap damaged components quickly without facing early termination penalties, activation charges, or hidden fees.

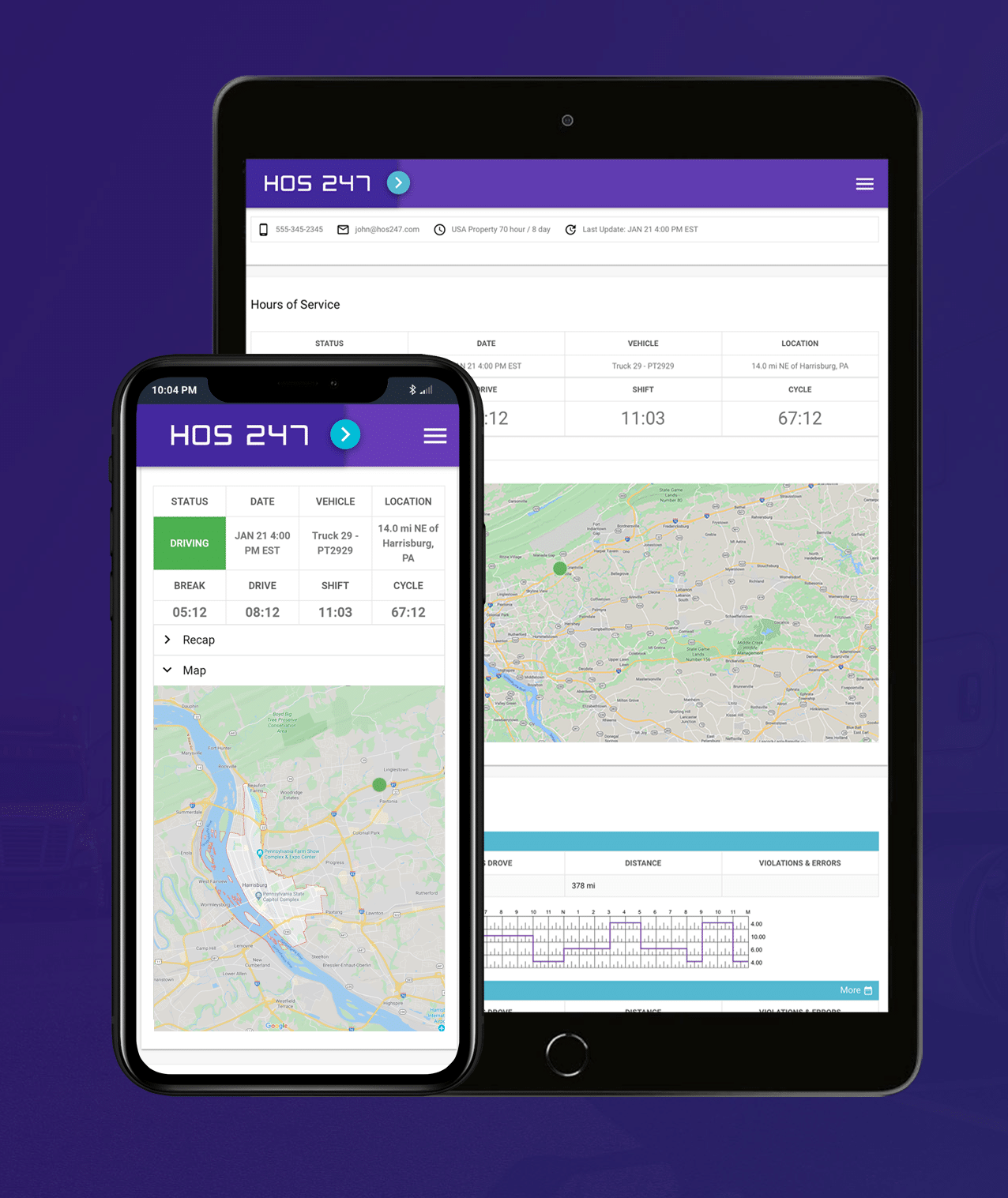

- Centralized fleet manager portal. Simplifies fleet oversight using integrated management tools. Fleet administrators can view real-time GPS location tracking, digital driver logs, and automated IFTA distance calculations across every jurisdiction from a single dashboard.
- No-contract subscription plans. Maintains operational flexibility with no-contract subscription models. Carriers protect their cash flow by scaling vehicle counts up or down as business demands fluctuate, without being tied to long-term hardware leases.
Combining reliable engine hardware with a driver-focused mobile application allows commercial motor carriers to protect their safety ratings, reduce back-office paperwork, and optimize their daily operations.
Frequently Asked Questions about Electronic Driver Logs
How long can a truck operate on paper records if the electronic driver log system malfunctions?
Under regulatory standards, a commercial motor vehicle may operate using manual paper log sheets for up to 14 days following an electronic logging device malfunction (or until returning to the home terminal if the trip exceeds 14 days). The driver must inform the carrier as soon as the vehicle is safely parked upon discovering the failure and reconstruct the preceding 14 days of duty status records. The motor carrier must repair or replace the unit within this window to remain compliant and avoid roadside citations.
Does a driver logbook app require an uninterrupted cellular data connection to remain legal?
No. Compliant logging platforms store all hours of service tracking data locally on the mobile device’s internal storage when traveling through areas without cellular reception. The device continues to read engine data directly via its local Bluetooth link with the engine gateway. A cellular connection is only necessary for cloud synchronization with the fleet management portal and for performing digital roadside eRODS transfers.
Can an enforcement officer inspect personal smartphone content during an electronic driver logs review?
No. Safety officials hold the legal authority to view only the driver’s hours of service records and required compliance screens. Utilizing a dedicated single-tap inspection mode locks out all personal applications, photos, messages, and non-compliance software files, presenting strictly the standardized 24-hour graph grid and driver duty logs.
What are the specific electronic logging device requirements for short-term rental trucks?
Commercial motor vehicles leased for a period of 30 days or fewer qualify for a specific regulatory exception. Drivers operating these short-term rental trucks may track their hours of service using manual paper records, provided they carry a copy of the active rental agreement inside the cab.
How does the platform protect driver privacy during personal conveyance shifts?
When a driver legally selects the Personal Conveyance (PC) off-duty status, the platform automatically reduces GPS tracking precision. Instead of recording exact street-level or location coordinates, the software records broad geographic positioning within a 16-kilometer (10-mile) radius. This safeguards driver privacy during off-duty travel while preserving compliance logs.
The Business Impact of Quality Driver Logs
Navigating compliance standards requires choosing equipment built for physical reliability and software simplicity. Implementing electronic driver logs is more than an exercise in satisfying regulations; it is a foundational operational decision that affects daily driver productivity, roadside inspection efficiency, and overall fleet profitability.
Evaluating electronic logging systems requires looking beyond minimal upfront costs to inspect hardware stability, driver app usability, and vendor transparency. Unstable hardware connections, complex screen menus, and unexpected subscription charges quickly erode operating margins through lost driving hours and administrative overhead.
Maintaining regulatory compliance does not have to disrupt everyday transport operations when supported by the right tools. Supporting independent owner-operators and mixed commercial fleets with reliable, contract-free automated logging tools remains the most effective strategy for reducing administrative overhead, protecting safety ratings, and keeping wheels turning profitably.
