The commercial transportation industry involves much more than heavy-duty tractor-trailers. Many operators assume that electronic logging rules only apply to Class 8 trucks. However, box truck ELD requirements apply to a wide range of commercial vehicles operating on the national highway network. Box trucks with a gross vehicle weight rating exceeding 10,001 pounds often fall under the exact same federal mandate as larger freight haulers. Truckers can prevent compliance failures by understanding exactly how these rules apply to smaller commercial assets and matching exact vehicle weights and route types against current Department of Transportation (DOT) rules.
This guide explains exactly how federal logging rules apply to box trucks based on vehicle weight, route distance, and cargo type. Fleet managers and drivers can use these facts to determine their operational status with certainty. Applying these standards correctly keeps regional deliveries moving efficiently and protects the carrier’s safety rating.
Do Box Trucks Need ELD?
Several specific operational factors dictate whether a commercial vehicle must be equipped with digital hardware. Fleets must evaluate vehicle weight, geographic routes, and existing record-keeping obligations to establish compliance.
Verifying Gross Vehicle Weight Rating
The primary physical trigger for the electronic logging mandate is the size and capacity of the vehicle. Any box truck operating in interstate commerce with a Gross Vehicle Weight Rating (GVWR) or actual gross weight of 10,001 lbs or more is classified as a commercial motor vehicle by the Federal Motor Carrier Safety Administration (FMCSA). Fleet managers can verify this rating on the manufacturer identification plate inside the driver-side door frame. If the rating meets or exceeds this weight threshold, federal safety regulations apply automatically, regardless of whether the truck is fully loaded or running empty.
Evaluating the Route and Cargo Origin
To answer the core question of whether a box truck needs digital tracking, carriers must assess where the vehicle travels and where the cargo originates. Crossing state lines instantly subjects the vehicle to federal jurisdiction. However, local routes that remain entirely within a single state can still be classified as interstate commerce if the freight originated out of state or internationally. For example, delivering cargo from a local rail yard or airport that arrived from another state constitutes interstate commerce and triggers federal oversight.
Connecting the Record of Duty Status Requirement
The mandate for electronic hardware connects directly to the requirement for keeping a Record of Duty Status (RODS). If a box truck driver is legally required by the FMCSA to maintain a daily logbook to track their driving hours and rest periods, that logbook must be electronic. Fleets cannot choose to use paper logs unless the driver qualifies for a specific temporary or permanent exemption. If the driver is required to keep a log for more than eight days in any rolling 30-day period, compliant hardware must be installed in the vehicle.
Do you have any questions? Talk to ELD Advisor: 650-405-3372 or Request Callback
The 150 Air-Mile Short-Haul Exemption
Local delivery operations often qualify for regulatory relief that removes the digital logging requirement entirely. The short-haul exemption applies to commercial motor vehicles that complete their routes within a highly localized area and finish their shifts within a strict timeframe.
Qualifying Distance and Time Limits
To qualify for the short-haul exemption, drivers must meet three specific federal conditions:
- Distance boundary. Operations must remain strictly within a 150 air-mile radius (172.6 statute miles) of the daily starting location.
- Shift limit. The maximum allowed shift is 14 consecutive hours.
- Reporting location. Drivers must start and end their shift at the exact same location every day.
Exceeding the distance radius or the shift limit by any amount immediately nullifies the exemption for that day. Returning to the original reporting location within the 14-hour window is a non-negotiable requirement for maintaining short-haul status.
Maintaining Internal Timecard Records
Meeting the distance, time, and location criteria eliminates the need for an ELD. Instead of keeping detailed digital logs in the cab, fleets maintain accurate timecards at the reporting location. These internal records serve as proof of compliance during FMCSA audits.
Compliant timecards must include specific daily information:
- Start time. The exact time the driver reports for duty.
- End time. The exact time the driver is relieved from duty.
- Total hours. The total number of hours worked during the specific shift.
- Location data. Verification of the daily reporting location.
Maintain accurate timecards even when exempt from digital logs to ensure audit readiness and protect the fleet from out-of-service violations.
Assessing the Eight-Day Rule for Occasional Long-Haul
Regional delivery demands frequently push short-haul drivers beyond their standard local boundaries due to unexpected route changes, heavy traffic, or special deliveries. The FMCSA provides a specific logging exemption to accommodate these infrequent changes without requiring immediate hardware modifications.
Tracking the 30-Day Exemption Window
To answer the common query — do box truck drivers need eld hardware for infrequent trips outside the short-haul radius — the answer depends entirely on the frequency of those trips. Drivers do not need an electronic logging device if they leave their 150 air-mile radius for eight days or fewer within any consecutive 30-day period. Instead, they can legally use paper logs to record their duty status. This 30-day window is a rolling timeframe, meaning fleet managers must track these occurrences continuously to ensure drivers do not cross the threshold.
Utilizing Paper Logs for Rare Deliveries
Keep operations flexible by utilizing paper logs for rare out-of-radius deliveries. On the specific days a short-haul driver operates outside the standard radius, they must fill out a standard paper logbook to document their duty status changes precisely.
The driver must also carry their paper logs from the previous seven days during these trips to present to enforcement officials during a roadside inspection. This provision allows fleets to accept occasional long-distance routes or handle extended shifts without committing to permanent hardware installations across every vehicle.
Preparing for the Ninth-Day Cutoff
The exemption operates with a strict limit. Once a driver exceeds the short-haul rules for a ninth day within the rolling 30-day period, the paper logging exception is instantly voided, and an electronic logging device becomes mandatory. At the start of that ninth shift, the driver cannot legally operate the commercial motor vehicle without a certified logging device installed and actively synchronized to the engine. Fleets with drivers who consistently approach seven or eight days of long-haul driving per month should proactively install compliant hardware to prevent unexpected operational downtime.
Engine Age and Driveaway-Towaway Exemptions
Specific mechanical configurations and operational types are completely excluded from electronic logging mandates. The FMCSA bases these exemptions on the technical capabilities of the vehicle or the specific nature of the transportation service being performed.
The Pre-2000 Engine Rule
Vehicles equipped with an engine manufactured in the model year 1999 or earlier are exempt from the electronic logging mandate. This rule clarifies a common structural question: do box trucks need ELD hardware if they are older models?
The exemption exists because older engines lack the Electronic Control Module (ECM) infrastructure required to automatically capture engine power status, vehicle motion, and total miles driven. Drivers operating these older vehicles must still follow federal Hours of Service (HOS) limits, but they are permitted to record their duty status using standard paper logbooks.
Driveaway-Towaway Operations
The nature of the shipment can also determine whether digital monitoring is mandatory. For instance, is ELD required for box trucks involved in driveaway-towaway operations?
The FMCSA grants an exemption when the commercial vehicle being driven is the actual commodity being delivered. If a driver is transporting a newly manufactured box truck from a factory to a dealership, or delivering a truck as part of a vehicle sale, paper logs are legally permitted. Because the driver does not own or permanently operate the vehicle as part of a standard fleet delivery service, a permanent hardware installation is not required.
Verifying Manufacturing Dates via the VIN
To ensure valid exemption status, motor carriers must verify the precise manufacturing date of the engine rather than the chassis. Glider kits and repowered trucks frequently feature a chassis year that differs from the engine model year.
Enforcement officers verify compliance by cross-referencing the physical engine serial number or checking the vehicle identification number (VIN) during roadside safety checks. Drivers operating under the pre-2000 engine exemption should keep a copy of the engine specification sheet or a manufacturer certification letter in their compliance folder to avoid registration disputes during an inspection.
Technical Hardware Requirements for Box Trucks
Deploying the correct physical equipment is just as critical as understanding logging exemptions. Box trucks utilize distinct vehicle architectures that require specific hardware configurations to achieve full regulatory compliance.

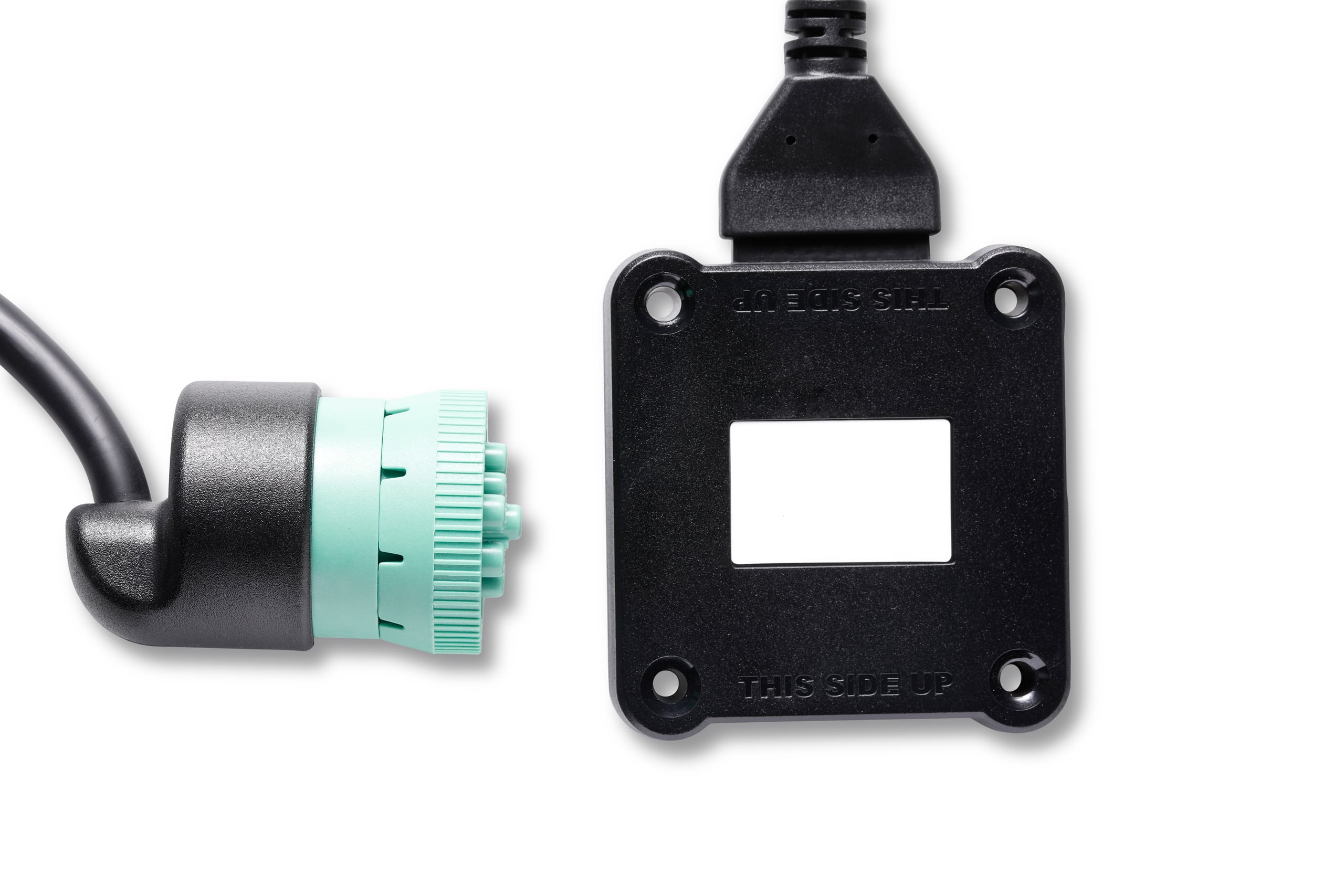

Selecting the Correct Diagnostic Interface
Unlike heavy-duty Class 8 semi-trucks that rely almost exclusively on 6-pin or 9-pin J-Bus diagnostic ports, medium-duty box trucks often use alternative interfaces. Many Class 3 through Class 6 box trucks utilize standard OBDII ports, similar to consumer passenger vehicles.
Fleet managers must verify the specific port configuration of each vehicle before ordering hardware components. Connecting a logging device requires the matching cable type to ensure a secure, uncompromised physical connection to the vehicle network. Using incorrect adapters or forcing connections can cause data distortion and lead to compliance failures during roadside checks.
Automatic Engine Synchronization
Federal logging standards mandate that the hardware device must connect directly to the vehicle’s Engine Control Module (ECM). This synchronization ensures that the device automatically records critical operational data without relying on manual driver input.
The hardware must continuously monitor the following data points:
- Engine power status. The device logs exactly when the engine is turned on or shut off.
- Vehicle motion. Driving status must trigger automatically as soon as the vehicle reaches a speed of 5 mph.
- Total miles driven. The device pulls odometer readings directly from the engine computer to ensure accurate mileage tracking.
- Engine hours. Total operational hours are tracked to verify accurate duty status measurements.
Manual logging apps that rely solely on smartphone GPS data do not meet federal compliance standards. The physical hardware must remain tethered to the ECM throughout the entire trip to ensure seamless data capture.
Telematics Data Transfer Methods
During a roadside safety check, drivers must be able to transfer their electronic records to enforcement officers instantly. Compliant hardware must support authorized telematics transfer methods to transmit data securely to the FMCSA web services portal.
The system must utilize at least one of the two standard federal transfer options:
- Wireless web services. The device transmits the encrypted data file directly through an active cellular data connection to the roadside officer’s inspection system.
- Secure email transfer. The logging platform routes the standardized compliance file via email to the designated federal repository.
Drivers must understand how to initiate this transfer process from their in-cab display to prevent unnecessary inspection delays.
Managing Roadside Inspections in a Box Truck
Roadside inspections require drivers to demonstrate immediate, verifiable compliance with federal logging rules. Fleet managers must ensure that every driver understands the exact protocols for interacting with enforcement officers. Preparing the vehicle and the driver for these encounters prevents administrative delays and protects the carrier’s safety rating.
Maintaining Required Instruction Materials
Federal regulations mandate that specific physical documents must remain inside the commercial vehicle at all times. Missing any of these required documents results in a direct compliance violation, even if the digital hardware functions perfectly.
Drivers must carry the following materials in the cab:
- User manual. A comprehensive document detailing how to operate the installed electronic logging device.
- Transfer instructions. A step-by-step guide explaining how to produce and transfer the digital records to an enforcement officer.
- Malfunction guide. An instruction sheet outlining the required reporting steps a driver must take if the hardware experiences a technical failure.
- Blank paper logs. A backup supply of standard graph-grid paper logs sufficient to record duty status for a minimum of eight days.
Navigating the Device Inspection Mode
The driver holds the primary responsibility to display digital logs clearly to enforcement officers upon request. Compliant logging platforms feature a dedicated inspection mode designed specifically for roadside checks.
Activating this mode locks the application interface, preventing the officer from accessing other private applications or altering the driver’s underlying data. The display must clearly present the driver’s duty status graph for the current 24-hour period alongside the preceding seven days. Drivers must know exactly how to activate this mode and hand the display device to the officer without hesitation.
Expediting the Inspection Process
Expedite the inspection process by keeping all required documentation in a dedicated, highly visible compliance folder. When an officer approaches the vehicle, the driver should immediately have the physical instruction materials, the vehicle registration, and the active inspection screen ready for review. Presenting organized records demonstrates professional competence and often results in a faster, smoother inspection experience, allowing the driver to return to their route quickly.

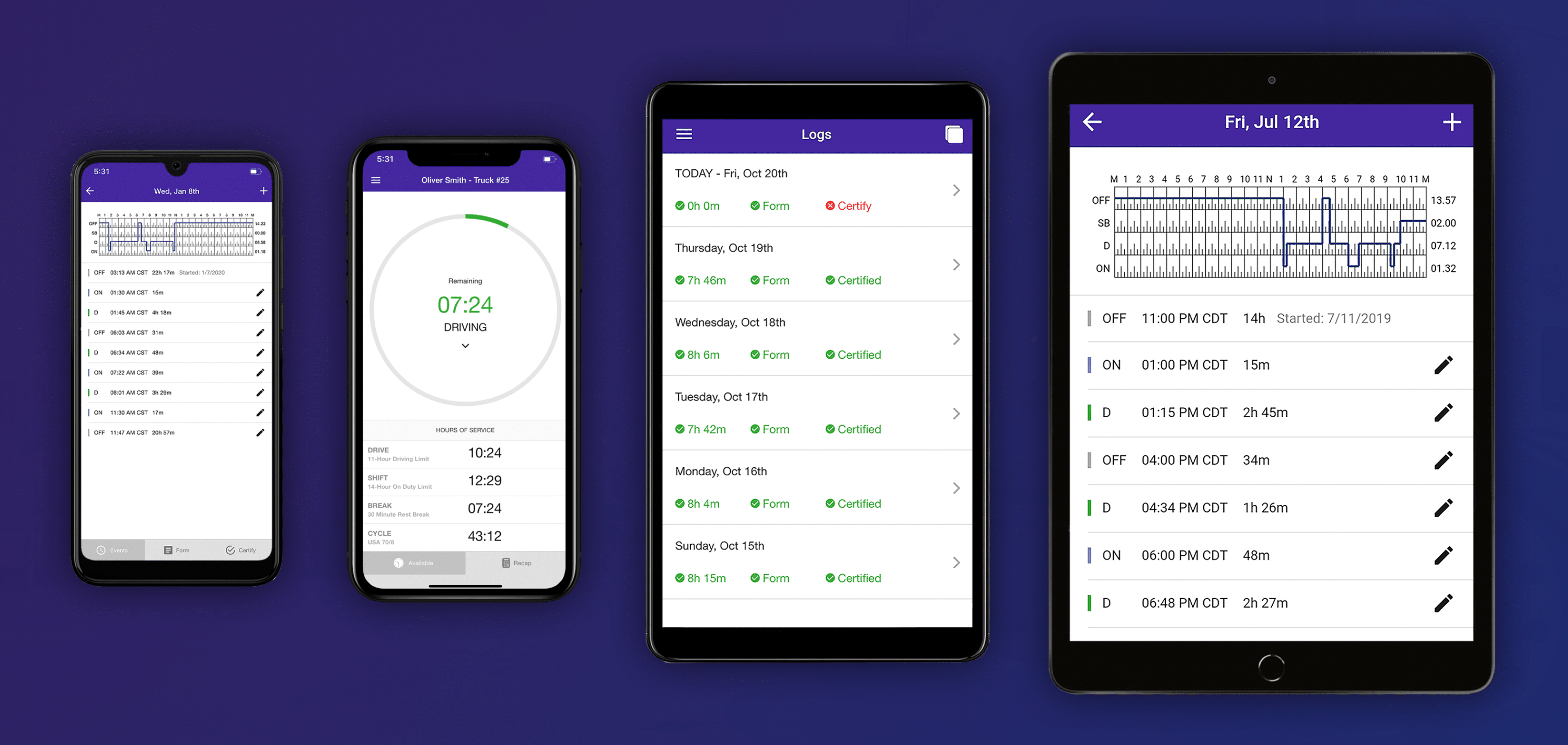

Operational Benefits of HOS247 ELD Solutions
Selecting a compliance partner involves evaluating how well the hardware and software integrate into daily operations. HOS247 provides reliable tracking systems engineered to minimize the administrative burdens associated with regulatory record-keeping. This is why truckers trust us:
- Reliable hardware connectivity. The system maintains a stable connection between the vehicle diagnostic port and the mobile application during both local and regional routes.
- High-quality hardware. We offer durable, high-quality hardware components engineered specifically to handle continuous truck vibrations.
- Rapid plug-and-play installation. Fleets eliminate vehicle downtime by utilizing hardware units that connect securely to the vehicle diagnostic port within minutes.
- Simplified duty logging. Operators manage their duty status changes easily using an accessible, driver-first software interface that requires minimal training.
- Multi-lingual technical support. Professional representatives assist drivers directly on the road in English, Spanish, Russian, and Polish seven days a week.

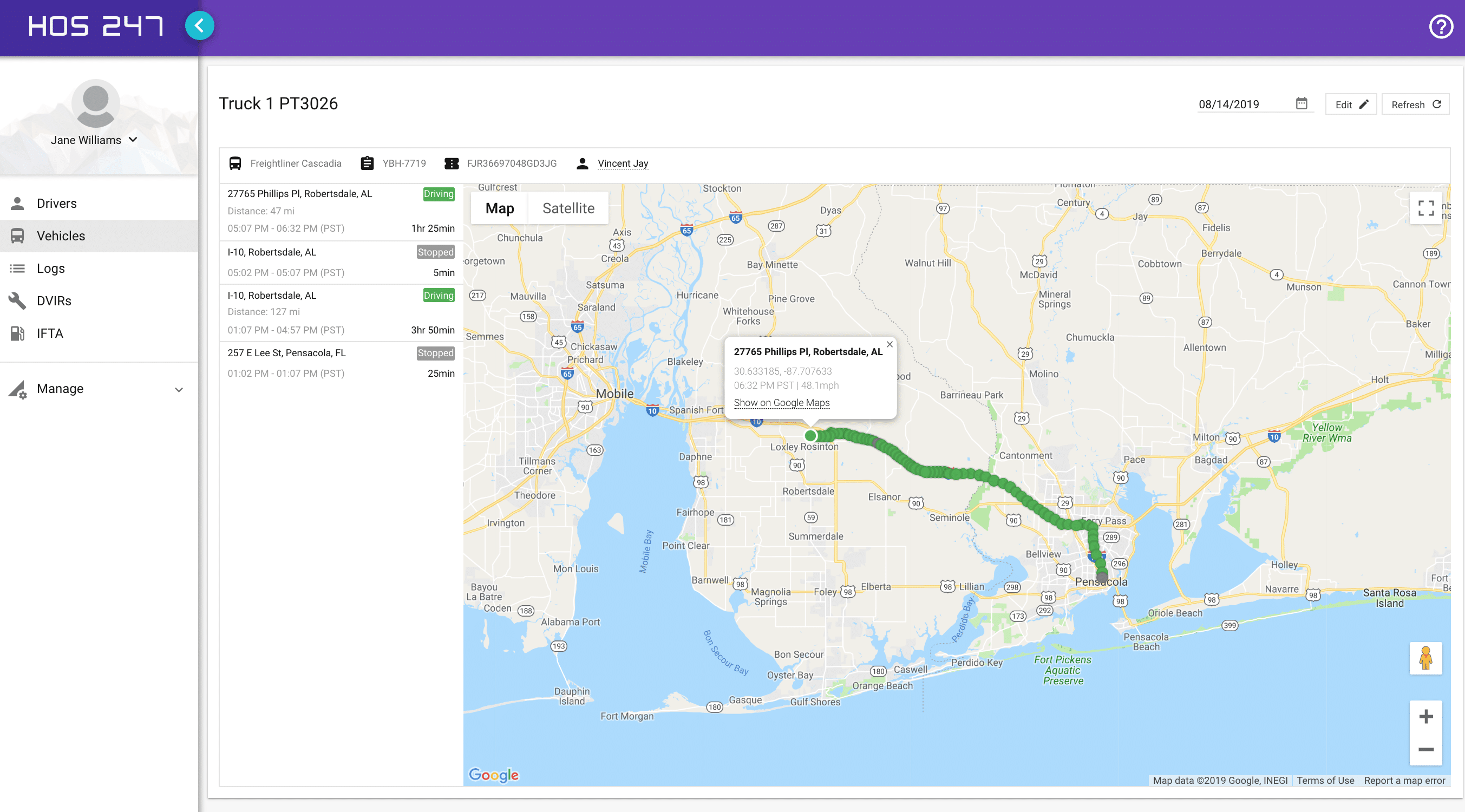

- Automated fleet visibility. Fleet managers gain clear oversight of available driver hours, vehicle locations, and IFTA mileage calculations through an organized administrative portal.
- Offline-first architecture. The hardware continues recording logs automatically in remote dead zones, ensuring perfect data capture when local delivery routes pass through poor cellular coverage areas.
- Flexible trial periods. Motor carriers can test the system securely under real road conditions using a 14-day trial backed by a hassle-free refund policy.
- Transparent monthly pricing. Fleet managers protect operating budgets effectively by choosing straightforward service plans that operate without hidden fees or multi-year contracts.
A stable, integrated platform significantly reduces the manual administrative burden for growing delivery fleets. Automating compliance tracking eliminates the need to audit stacks of paper manifests, allowing fleet owners to scale their operations securely while maintaining a clean regulatory profile.
Frequently Asked Questions about Box Truck ELD Requirements
Do box trucks require an electronic log for intrastate trips?
Motor carriers must evaluate specific state regulations carefully before operating intrastate routes. Many individual states adopt federal commercial driving rules completely, making digital tracking strictly necessary for vehicles weighing over 10,000 pounds even during in-state hauls.
Do you need ELD for a box truck rental?
Fleet administrators must track the exact length of the vehicle lease to maintain compliance. The federal government provides a specific eight-day exemption for short-term commercial truck rentals. Motor carriers operating a rented box truck for nine days or more must install formal tracking hardware to remain fully compliant.
Does a box truck with a weight rating of 10,000 pounds or less require digital logs?
Vehicles falling below the 10,001-pound gross vehicle weight rating threshold generally operate completely outside standard federal commercial tracking mandates. Drivers operating these lighter delivery vehicles do not require formal logbooks unless they transport hazardous materials that require federal safety placards.
Can a commercial driver use a smartphone for daily duty logging?
Operators may use a standard smartphone or tablet strictly as the visual display screen for their daily logs. The mobile device must remain tethered via a steady Bluetooth or USB connection to a registered hardware unit connected directly to the internal engine diagnostic port.
What happens if a box truck driver exceeds the 150 air-mile radius?
The operator immediately loses their short-haul exempt status for that specific operational shift. The driver must instantly start a standard record of duty status for the day, and fleet managers must track this occurrence accurately against the rolling eight-day limit for occasional long-haul trips.
Final Summary of Box Truck Regulatory Standards
Navigating the complexities of commercial motor vehicle compliance requires a clear understanding of federal and state thresholds. Fleet managers and owner-operators must evaluate their vehicles based on objective data rather than industry assumptions.
Determining logging obligations relies on three primary factors including vehicle weight, route distance, and trip frequency. Any vehicle operating in interstate commerce with a GVWR or gross weight of 10,001 lbs or more is subject to federal safety oversight. Furthermore, drivers operating within a strict 150 air-mile radius who return to their home terminal daily may utilize localized timecards instead of electronic logs. Finally, short-haul drivers who occasionally exceed distance or time limits may use paper logs, but crossing that threshold more than eight times in a rolling 30-day window triggers an immediate hardware mandate.
Failing to implement the correct tracking methods can lead to costly roadside penalties, elevated CSA scores, and forced out-of-service delays. Proactively auditing fleet weights and route structures allows carriers to deploy hardware only where legally required, avoiding unnecessary equipment expenses while maintaining total compliance.
A clear approach to box truck ELD requirements ensures that carriers protect their safety profiles while optimizing daily dispatching. By blending strict regulatory adherence with reliable electronic logging solutions, like HOS247’s, local and regional delivery fleets can eliminate administrative friction, protect their drivers, and focus on sustainable business growth.
A Note to Our Readers on Compliance
This article is intended for informational and educational purposes only. It is not a substitute for official regulatory guidance or legal advice. HOS and ELD regulations are complex and subject to change and interpretation by enforcement authorities. Please always refer to official sources for the most current and accurate information.
